A224 Hose and Cable Ramp
Dimensions: 970 x 590 x 80 mm
Weight: 24 kg Max Load: 44 Tonnes
Outer Channels: 70mm wide x 50mm deep
Inner Channel: 55mm wide x 50mm deep
The A224 Hose and cable ramp is a 3 channel lidded ramp for pedestrians and vehicles. Each 970mm unit clicks together to make a continuous run. Cables/hoses can be added or removed once the ramps have been deployed. The lids are made from high visibility yellow PE.

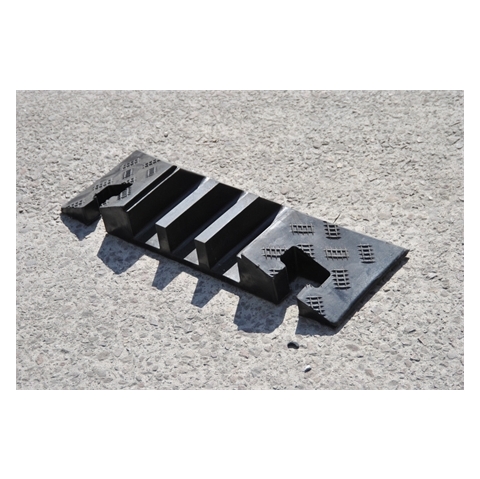

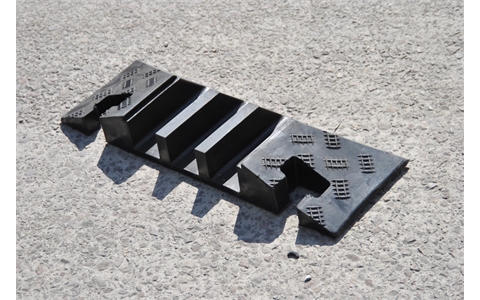

A225 Male & Female End Ramps, Set
Dimensions: (Male fitting) 150 x 590 x 80 mm : (Female fitting) 200 x 590 x 80 mm
Weight: 9 kg Max Load: 44 Tonnes when joined to A224
The A225 Hose and Cable Ramp is a 3 channel end connector for the A224 Hose and Cable Ramp. This part is sold as a pair, one male and one female fitting.This part has no lid.
