A232 MODULAR Hose and Cable Ramp for 100mm
Consists of two parts, The ramp A232 and the centre block A231.
A232 Dimensions: 535 x 295 x 118 mm Weight: 10 kg Max Load: 44 Tonnes
A231 Dimensions: 290 x 295 x 118 mm Weight: 5 kg Max Load: 44 Tonnes
The A232 Hose and Cable Ramp is the ramp portion of a modular system that allows for many hoses and cables to be protected.

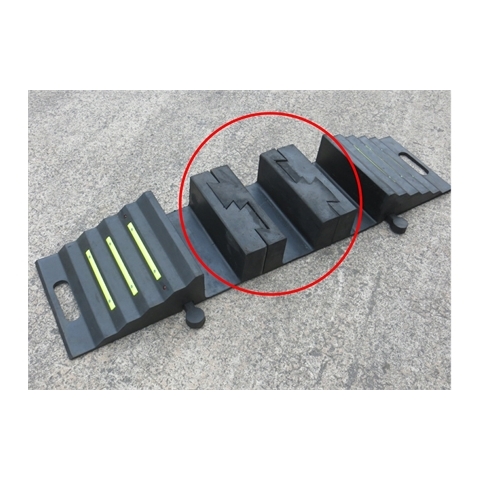

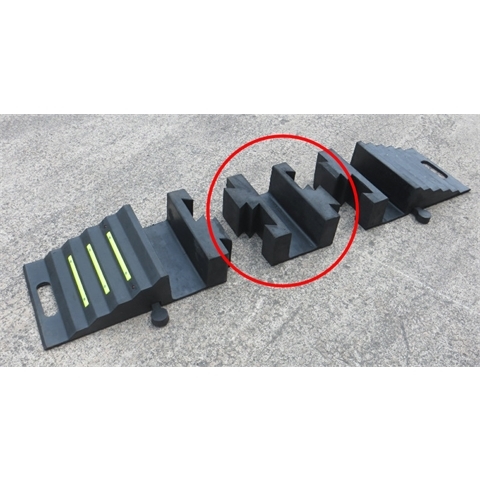

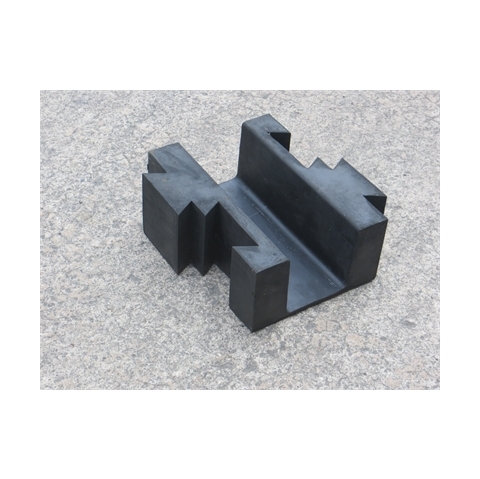

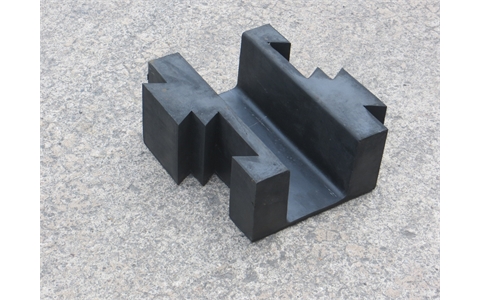

The central section of this system is A231. The part has one open top channel. The channel is 108mm at the base opening up to 115mm at the top. The depth of each channel is 110mm. Each part can be joined to another to make a ramp for an infinite number of cables.If required 2 pieces of A232 can be fitted together to make a ramp suitable for 2 x 100mm hose or cable, when packing these away it is possible to split the ramp and store face to face to take up less space than a standard hose ramp.
