A239 Joining Block 350mm for 140or180mm Dimensions: 350 x 400 x 180 mm Weight: 24 kg Max Load: 44 Tonnes Female to female
A237 Joining Block 450mm for 140or180mm Dimensions: 450 x 400 x 180 mm Weight: 34 kg Max Load: 44 Tonnes Female to Male

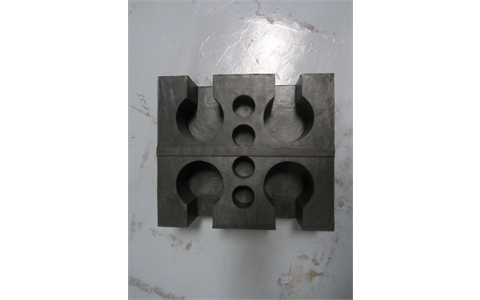

A239 Hose and Cable Ramp is the rubber joining block section for the modular ramp system designed to join any of the steel bridge sections together so that multiple hose/cables can be covered. This part locks two steel bridge sections together by dropping over the two steel "pots" on each end of the steel bridge. If required this part enables any number of steel bridges to be joined.
The A237 Hose and Cable Ramp is the rubber block section for the modular ramp system designed to take larger diameter hose from 140mm up to a maximum of 180mm in diameter depending upon which steel bridge section is used. This particular part keeps the vehicle up 160mm above the ground. Used with other rubber elements of this system it is possible to make a ramp 3400mm long which enables most cars to traverse the ramp without "beaching". The design allows for the front wheel to still be up on the rubber blocks when the rear wheel starts up the leading edge of the ramp.
